Totals

Totals help users move from detailed branch-level summaries to whole-table summaries. RevoGrid Pivot supports grand totals and subtotals through pivot.totals.

Open the full demo and framework source.

Calculation meaning

Use the explicit numeric/scalar aggregation configuration when defining measure input. At each leaf, subtotal and grand-total grain, Pivot recomputes the configured operation from contributing facts. For groups [10] and [20, 20, 20], numeric AVG is 17.5 at the grand total, not 15. Distinct and paired weighted totals are likewise nonadditive. A weighted total uses eligible numerator/weight sums at that grain; a zero denominator is null.

Percentages retain numeric ratios: 0.5 means 50%. Hidden totals remain available as denominators; collapse/expansion changes presentation. Running percentage divides a prefix of ordered peer aggregates by that peer sum, not by displayed subtotal rows or only the viewport. Source filters change fact scope; result filters select groups and independently test totals, so totals need not equal the sum of retained displayed groups. Independent local values[].summaries can deliberately select different group/total operations; standard remote execution rejects these overrides.

Server totals must come from complete authorized source scope under the backend’s declared policy. aggregationSemantics pins execution location; it does not establish equal local/server null, count or precision semantics.

The Totals Config

totals: {
  grandTotal: true,
  subtotals: true,
  grandTotalLabel: 'All Sales',
  subtotalLabel: 'Subtotal',
}

What Each Option Does

• grandTotal: Adds a grand-total row. When column dimensions exist, it also adds grand-total value columns.
• subtotals: Adds subtotal rows for intermediate row branches and subtotal value columns for intermediate column branches.
• grandTotalLabel: Overrides the default "Grand Total" label.
• subtotalLabel: Overrides the default "Subtotal" label.
• suppressSingleChildSubtotals: Hides subtotal rows for single-source branches where the subtotal duplicates the only leaf.
• suppressGrandTotalWhenSingleLeaf: Hides the grand-total row when the whole result is one source-backed leaf.

Smart Suppression

Interactive example

Pivot totals

Suppress duplicate single-child/subtotal/grand-total rows

The example loads when visible.

Reset

Use suppression when totals are enabled for broad reports, but small filtered results should avoid duplicate summary rows:

totals: {
  subtotals: true,
  grandTotal: true,
  suppressSingleChildSubtotals: true,
  suppressGrandTotalWhenSingleLeaf: true,
}

Suppression is conservative. Multiple source rows, multiple meaningful leaves, or disabled subtotals / grandTotal keep the existing total behavior.

Row Totals

When row fields exist:

• subtotal rows are inserted after the descendants of each branch
• the grand-total row is rendered separately and pinned at the bottom

This keeps the detailed body rows readable while still making the full-table total visible.

Column Totals

When column fields exist:

• intermediate column paths can expose subtotal value columns
• the full column hierarchy can expose grand-total value columns

Pivot does not create a separate total table. Totals become part of the generated analytical structure.

Column Totals With Drill-Down

Column totals and column collapse are designed to work together. A collapsed group shows one aggregate carrier. Expanding that group keeps the parent aggregate visible as a subtotal column and reveals only the next configured level.

Collapsed years use one aggregate carrier per year. Grand-total columns remain independent from the branch collapse state.

Expanding 2023 reveals its configured Year Total first, followed by the next-level month groups. The subtotal spans the otherwise unused lower header depth.

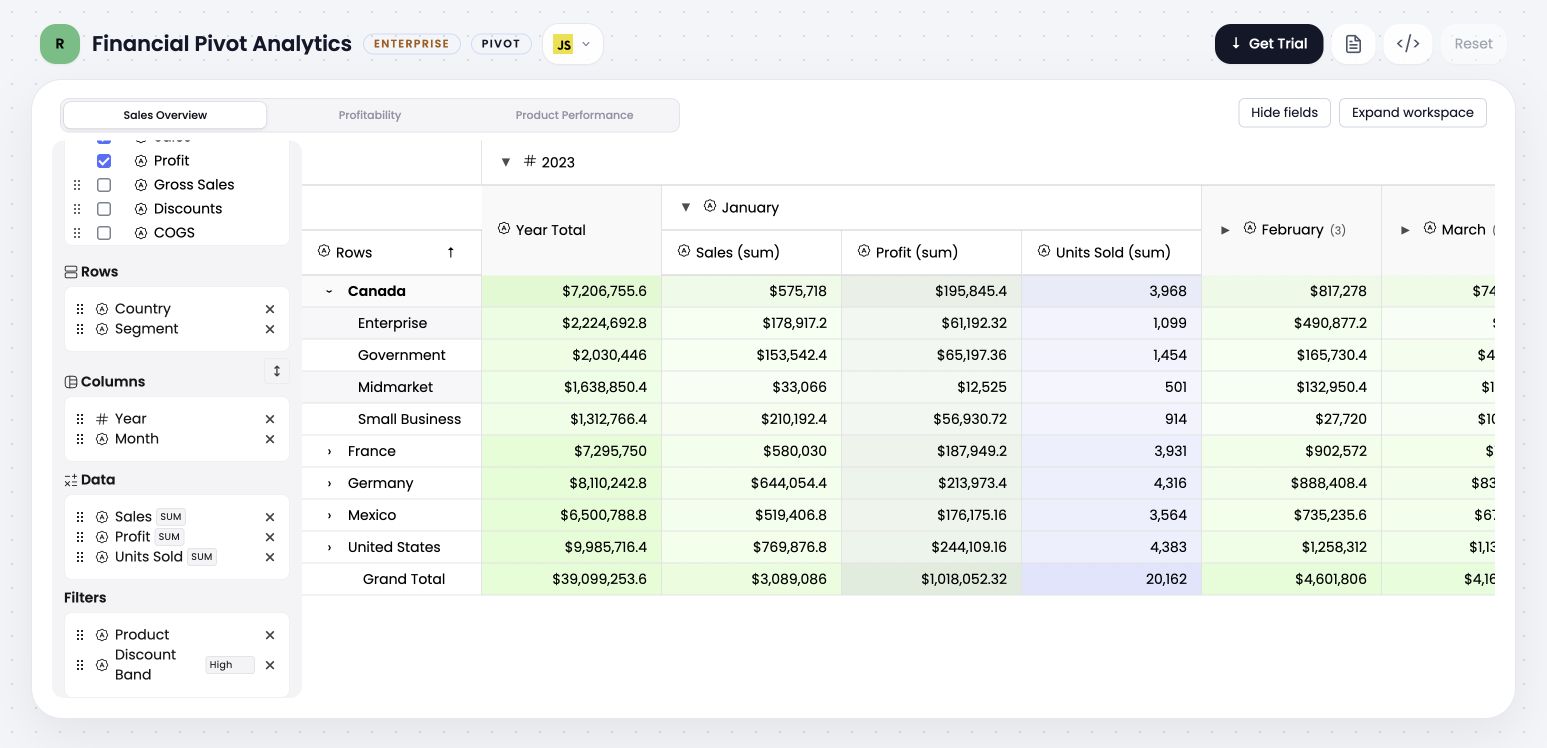

Drill-down is progressive: expanding January reveals only January’s measures. Sibling months stay collapsed and Year Total remains one Sales subtotal column.

Behavior Matrix

Configuration	Collapsed group	Expanded group
totals.subtotals: false	Uses the regular collapsed aggregate bucket.	Shows descendants without a parent subtotal column.
totals.subtotals: true and the level subtotal is enabled	Uses the level subtotal as the aggregate carrier.	Shows the same subtotal plus the next visible descendant level.
columnLevels[level].subtotal: false	Uses the regular collapsed aggregate bucket for that level.	Omits the subtotal for that level, even when other levels show subtotals.
columnLevels[level].collapsible: false	The level cannot enter a collapsed state.	The level stays expanded; its subtotal can still be shown.
subtotalPosition: 'before'	Position is not visible while the branch is compact.	Places the parent subtotal before descendant columns. This is the default.
subtotalPosition: 'after'	Position is not visible while the branch is compact.	Places the parent subtotal after descendant columns.
subtotalValues: ['sales']	The compact carrier exposes only Sales for that subtotal.	The subtotal contains only Sales, while descendant groups can still expose every configured measure.
totals.grandTotal: true	Grand-total columns and the pinned grand-total row remain visible.	Grand totals remain independent from individual branch expansion.

Recommended Per-Level Configuration

This configuration matches the screenshots:

const pivot: PivotConfig = {
  rows: ['country', 'segment'],
  columns: ['year', 'month'],
  values: [
    { prop: 'sales', aggregator: 'sum' },
    { prop: 'profit', aggregator: 'sum' },
    { prop: 'unitsSold', aggregator: 'sum' },
  ],
  columnCollapse: {
    enabled: true,
    collapsed: true,
  },
  columnLevels: {
    0: {
      collapsible: true,
      collapsed: true,
      subtotal: true,
      subtotalLabel: 'Year Total',
      subtotalPosition: 'before',
      subtotalValues: ['sales'],
      filterable: true,
      sortable: true,
    },
    1: {
      collapsible: true,
      collapsed: true,
      subtotal: false,
      filterable: false,
      sortable: false,
    },
  },
  totals: {
    subtotals: true,
    grandTotal: true,
  },
};

columnLevels uses the zero-based order of columns: level 0 configures year, level 1 configures month, and so on.

Resolution And Precedence

The following rules make mixed configurations predictable:

1. totals.subtotals is the global subtotal gate. When it is false, no columnLevels[level].subtotal setting can enable a subtotal.
2. With global subtotals enabled, an explicit columnLevels[level].subtotal overrides totals.disabledSubtotals.columns for that level.
3. An explicit columnLevels[level].collapsible overrides the global columnCollapse setting for that level. When omitted, the level inherits columnCollapse.enabled.
4. columnLevels[level].collapsed controls the initial state for that level and falls back to columnCollapse.collapsed.
5. Persisted collapsedColumns state wins over both initial-state defaults for the matching generated group.
6. subtotalLabel, subtotalPosition, subtotalValues, filterable, and sortable apply only to their configured level.
7. Grand-total columns do not belong to a generated hierarchy level, so columnLevels does not change them.

Filtering And Sorting Through Collapse

The subtotal or collapsed aggregate represents one analytical group across both visual states. A filter or sort applied to that aggregate therefore stays active when the group expands or collapses:

• expanding does not broaden the filter to every newly visible child column
• collapsing does not discard the active filter or sort direction
• the active control moves between the compact carrier, parent group proxy, and visible subtotal without changing its analytical property
• filterable: false removes aggregate filter controls for that level
• sortable: false removes aggregate sorting for that level

The expand/collapse control appears before the group title. Expanding a group reveals one hierarchy level only; it does not expand its descendants or sibling branches.

Header Spanning

A direct subtotal such as Year Total fills the unused descendant header rows vertically. It remains one value column; it does not span horizontally across the descendant columns. This keeps the subtotal aligned with deeper headers without covering the parent expand/collapse control.

Example

For:

rows: ['region', 'rep'],
columns: ['year', 'quarter'],
values: [{ prop: 'sales', aggregator: 'sum' }],
totals: { grandTotal: true, subtotals: true },

You get:

• leaf rows for each region -> rep
• subtotal rows for each region
• grand total at the bottom
• leaf value columns for each year -> quarter
• subtotal value columns for each year
• grand-total value columns across all years and quarters

Important Notes

• Subtotals only appear when a hierarchy has more than one level to summarize.
• Grand totals use the configured label only for display. The internal total keys stay synthetic.
• A column subtotal remains the same analytical aggregate through collapse and expansion; only its header presentation changes.
• Per-level subtotal, collapse, filter, and sort settings are independent.
• In remote/server mode, totals stay part of the analytical contract and should be computed by the engine, not recomputed from visible UI cells.

Common Mistakes

• Expecting subtotals: true to add subtotal rows when there is only one row field.
• Expecting grand totals to stay inside the body rows. In the current implementation, grand total rows are pinned bottom rows.
• Assuming subtotal: true can bypass totals.subtotals: false.
• Assuming expanding a year should expand every month below it.
• Confusing a regular collapsed bucket with a subtotal carrier. They look similarly compact, but only a level with an enabled subtotal exposes that same subtotal as a visible column after expansion.
